7.6. Approve update vertical cabling request
| Name | Approve update vertical cabling request |
|---|---|
| Purpose | Allow Approvers to validate an update request for a vertical cabling entry between two equipments |
| Linked user stories |
4.51. Approver - Approve or reject update vertical cabling request 4.56. Organisation Approver - Approve or reject update vertical cabling request for organisation |
| APIs used | PUT /physical-links/<physical-link-id>/approve PUT /physical-links/<physical-link-id>/reject PUT or PATCH /physical-links/<physical-link-id> |
| Scope | This process only handles the validation of an already created update vertical cabling request The process of creating the entry is handled in a dedicated process. |
| Roles | System, Approver / Global Approver |
| Input | - id of the physical link update to validate - optionally the information to amend: - source equipment (mandatory) - destination equipment or unit (mandatory) - cable type (mandatory) - additional metadata |
| Output | - confirmation that the update request has been approved/rejected |

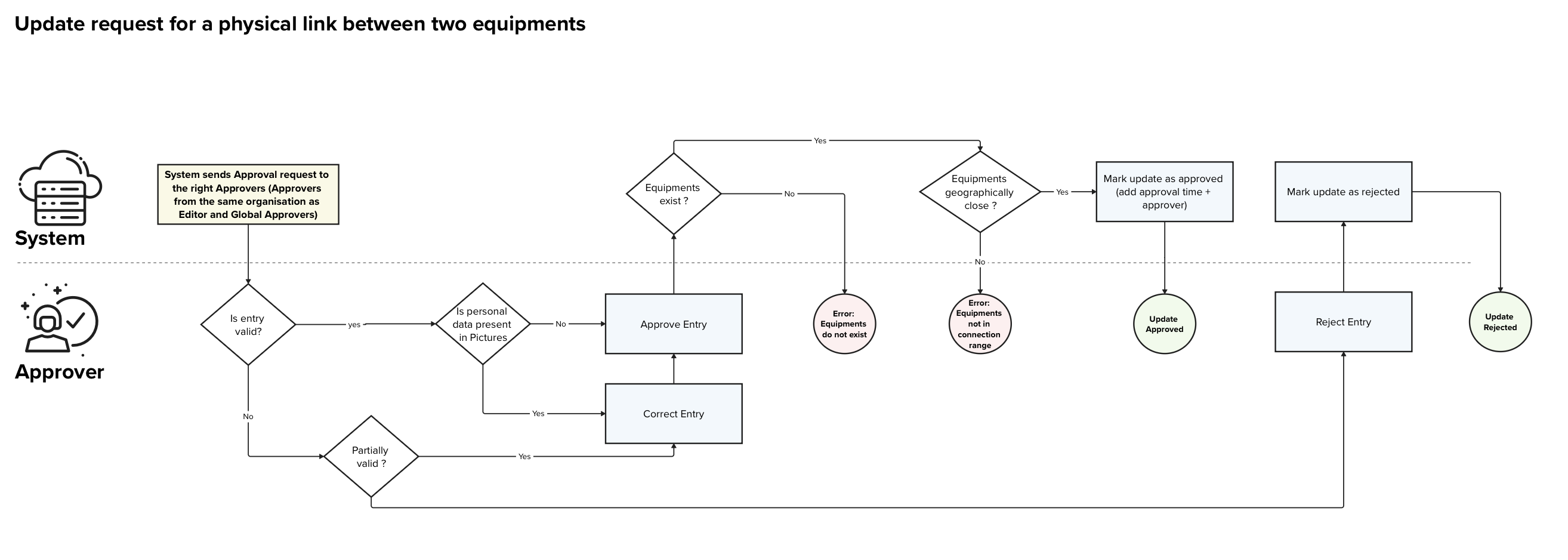

Detailed Process description
Main Process
| Step | Description | Actor(s) | Input(s) | Output(s) | Decision points |
|---|---|---|---|---|---|
| 1 | The System sends out notifications to the Global approvers and organisation approvers, indicating that an approval a pending. | System | - Outside trigger (e.g. Editor sent a new update request) | - notification to the Global and organisation Approvers | |
| 2 | The Approver verifies if the entry is valid and up to the expected quality standards | Approver | - Update physical link request | - yes / no | If the entry is valid: - Go to step 4 Else: - Go to secondary process S.1 |
| 3 | The Approver verifies if pictures linked to the entry contain any private data | Approver | - Update physical link request | - yes / no | If the entry is valid: - Go to step 4 Else: - Go to secondary process S.1 |
| 4 | The Approver approves the entry | Approver | - Update physical link request | - update physical link request approval | |
| 5 | The System verifies if the equipments/unit for which a physical link approval is sent exist | System | - update physical link request to approve | - yes / no | If the equipments/unit exist: - Go to step 6 Else: - Go to error E.1 |
| 6 | The System verifies that the two equipments/unit are geographically close enough to be connected | System | - update physical link request to approve | - yes / no | If the equipments/unit are close enough: - Go to step 7 Else: - Go to error E.2 |
| 7 | The System marks the update as approved and adds the approval date as well as the approver | System | - update physical link request to approve | - Approved update request | |
| 8 | The Approver gets notified that the approval was successfully done | Approver | - update request approval confirmation | - |
Secondary Processes
S.1. Submitted update physical link request needs adaptations
| Step | Description | Actor(s) | Input(s) | Output(s) | Decision points |
|---|---|---|---|---|---|
| 1 | The Approver verifies if the update physical link request is partially valid and can be corrected | Approver | - update physical link request | - yes / no | If the request can be corrected by the approver: Go to step 2 Else: Go to secondary process S.2. |
| 2 | The Approver corrects the submitted update request | Approver | - update physical link request | - corrected update physical link request | Go back to main process Step 4 |
S.1. Submitted update is rejected
| Step | Description | Actor(s) | Input(s) | Output(s) | Decision points |
|---|---|---|---|---|---|
| 1 | The Approver rejects the entry | Approver | - update physical link request | - update physical link request rejection | |
| 2 | The System marks the request as rejected and adds the date as well as the approver to the rejected update request | System | - update physical link request rejection | - rejected update physical link request | |
| 3 | The Approver gets a confirmation that the update request has been rejected | Approver | - update physical link request rejection confirmation |
Error Processes
E.1. Equipments / unit not found
| Step | Description | Actor(s) | Input(s) | Output(s) | Decision points |
|---|---|---|---|---|---|
| 1 | System returns an error indicating that one or both equipment(s) / unit do not exist | System | - | Error: equipments / unit do not exist |
E.2. Equipments / unit out of reach
| Step | Description | Actor(s) | Input(s) | Output(s) | Decision points |
|---|---|---|---|---|---|
| 1 | System returns an error indicating that the two equipments / unit are not geographically close enough to be connected. | System | - | Error: equipments / unit not in physical link range |
Additional Information
Exceptions
[400 Bad Request] Invalid input:
If mandatory fields are missing or fields are invalid, the system returns an error message. This includes the case in which one or both equipment(s) / unit do not exist.
[409 Conflict] Equipments / unit out of reach
If the Editor attempts to add physical link between two equipments / unit that are geographically too far away to be connected, the system should return an error.
[500 Internal Server Error] System Error
If the system fails to save changes due to an internal error, it displays an appropriate message and logs the error for further investigation.
